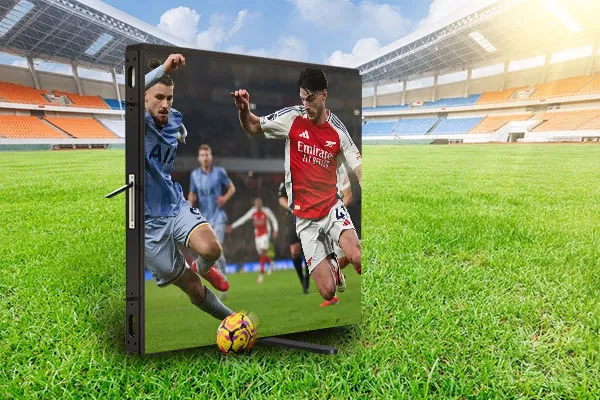

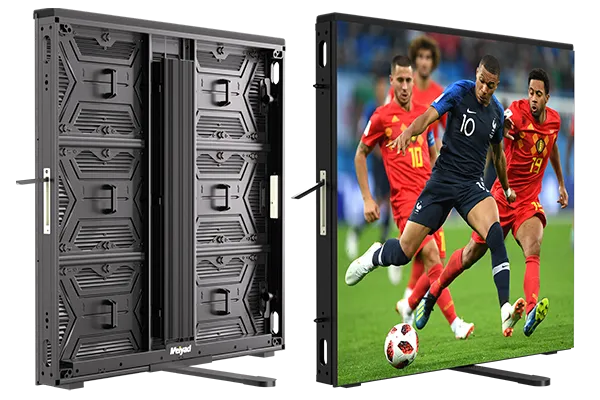

Stadium Perimeter LED Screen GF Series
- Pixel pitch: P5 P5.71 P6.67 P8 P10
- Module size: 480*320mm
- Cabinet size: 960*960mm
- Built for sports venues, the GF Series features a 960×960mm aluminum profile cabinet, soft protective mask, and top cushion for enhanced impact protection. With 6000+ nits brightness and 480×320mm front & rear maintenance modules, it delivers reliable performance and easy maintenance for outdoor stadium applications.

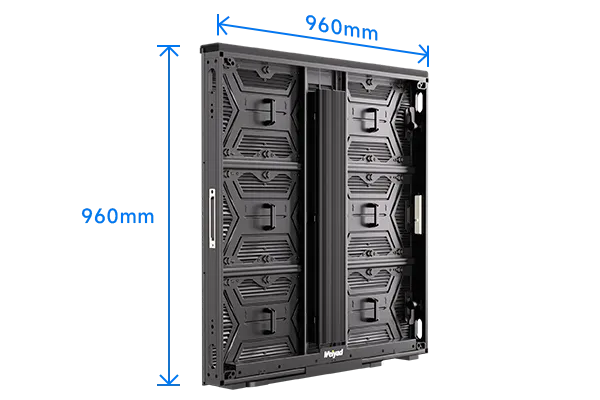

960×960mm Standard Aluminum Profile Cabinet
High-strength aluminum profile cabinet with lightweight design, excellent stability, and efficient heat dissipation for reliable outdoor performance.
6000+ Nits Ultra-High Brightness
The GF Series Stadium Perimeter LED Display delivers 6000+ nits of ultra-high brightness, ensuring outstanding visibility even under direct sunlight. Designed for professional sports venues, it provides crisp, vibrant visuals and reliable performance in all weather conditions.

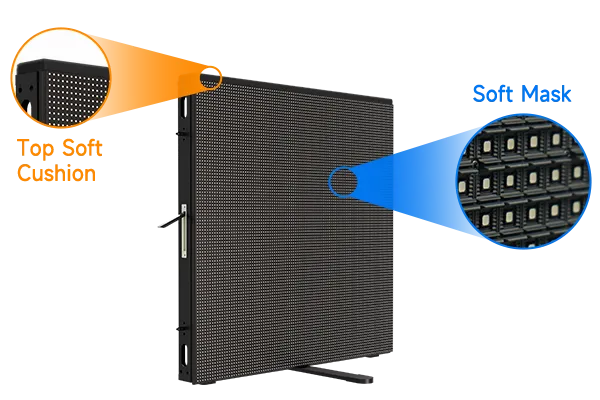

Soft Mask + Top Soft Cushion
Designed specifically for stadium applications, the Meiyad GF Series combines a soft mask with integrated top soft cushion to absorb ball impacts and reduce collision damage. This dual-protection design enhances player safety, safeguards the display, and ensures reliable performance throughout every match.

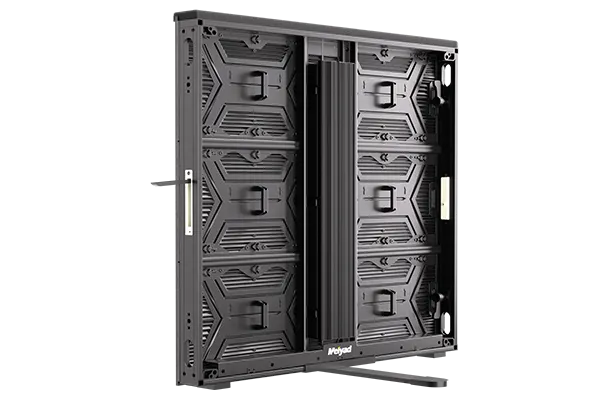

Dual-Side Foldable Handle Design
The Meiyad GF Series Stadium Perimeter LED Display is equipped with concealed foldable handles on both sides for easier transportation and faster installation. The handles fold away neatly when not in use, maintaining a clean cabinet profile while improving handling efficiency and installation convenience.

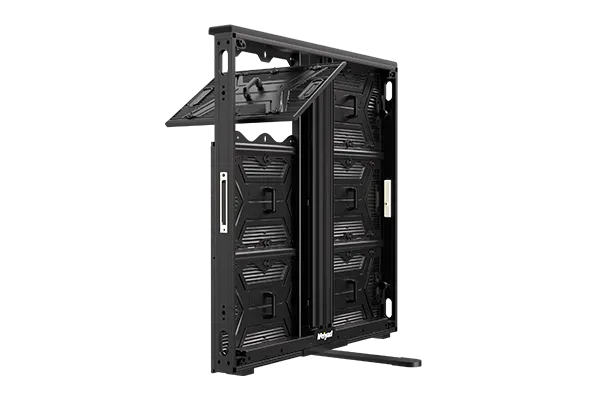

480x320 mm Large Module with Front & Rear Maintenance
Designed with 480x320mm large-size modules, the Meiyad GF Series minimizes module seams for a smoother display surface and quicker installation. With full front and rear service access, maintenance becomes faster and more convenient, adapting easily to a wide range of installation environments.
Applications
Designed for football stadiums, basketball arenas, and other sports venues, the Meiyad GF Series is ideal for live broadcasting, real-time match information, and advertising displays. It delivers reliable, high-quality visual performance for professional sporting events.

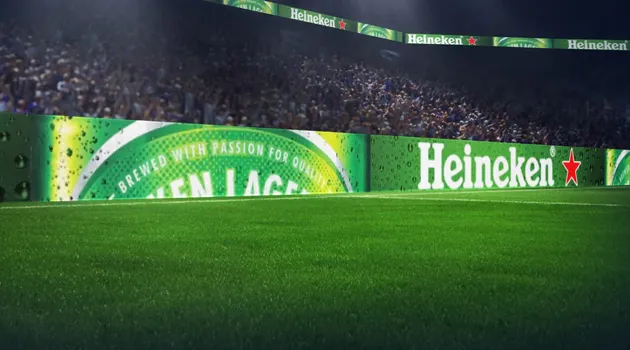

Football Stadium

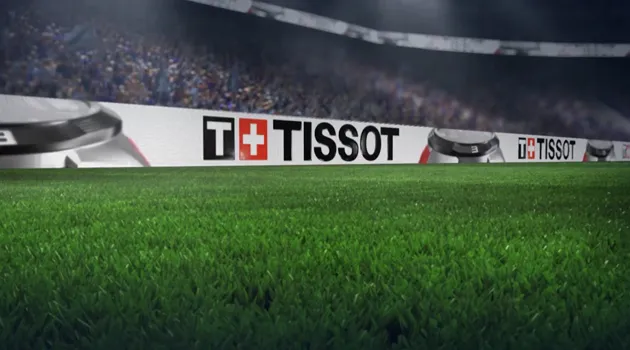

Sports Arena
Technical Parameters
Contact us for detailed parameters.
| Model | P5 | P5.71 | P6.67 | P8 |
| Module Size (W×H/mm) | 480×320 | |||
| Cabinet Size (W×H×D/mm) | 960×960×80 | |||
| Cabinet Weight (kg) | 26.5 | |||
| Brightness (nit) | ≥5000 | ≥5500 | ≥6000 | ≥6500 |
| Refresh Rate (Hz) | ≥3840 | |||
| Max. Power Consumption (w/㎡) | Common Cathode: 550 I Common Anode: 750 | |||
| Avg. Power Consumption (w/㎡) | Common Cathode: 180 I Common Anode: 320 | |||
| Remarks | For P5/P5.71, new soft masks for the stadium screens will need to be manufactured at a later stage. | |||
