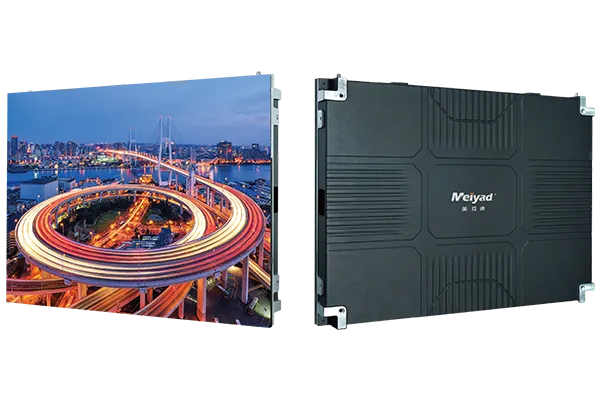

Fine Pitch LED Screen XU Series
- Pixel pitch: P1.25 P1.538 P1.86 P2 P2.5
- Cabinet size: 640*480*37mm
- Die-cast aluminum cabinet, wireless HUB connection, power and signal dual backup. Backside wireless design, 14-bit grayscale, 3840Hz refresh rate.

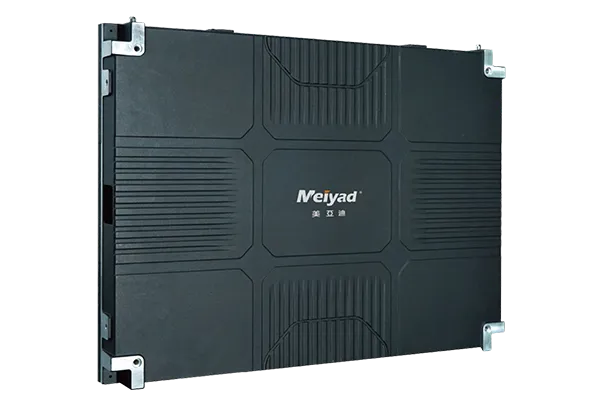

Die-cast aluminum cabinet
Excellent heat dissipation for extended lifespan. High precision ensures seamless splicing. Lightweight for easy installation and transportation. Strong structure resists deformation.
Low Brightness & High Grayscale
The image is fine and detailed, with smooth color transitions, effectively reducing glare and enhancing viewing comfort.

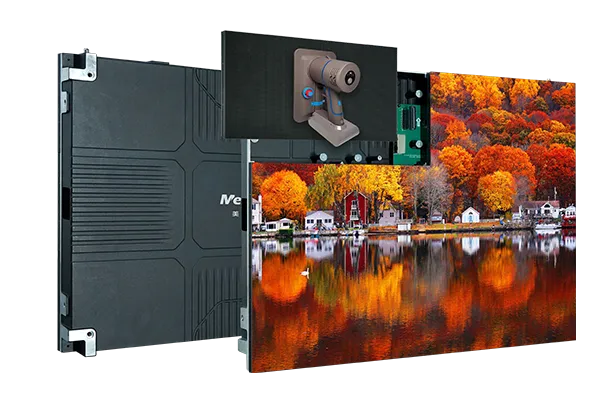

Wireless HUB Connection
Wireless HUB connection for modules with magnetic suction mounting, enabling quick and convenient installation.

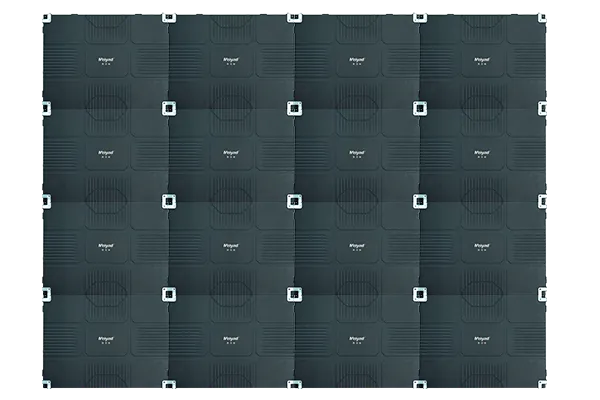

Backside Wireless Design
The rear of the screen is flat with no cluttered cables, improving overall flatness and making installation, disassembly, and maintenance more convenient.

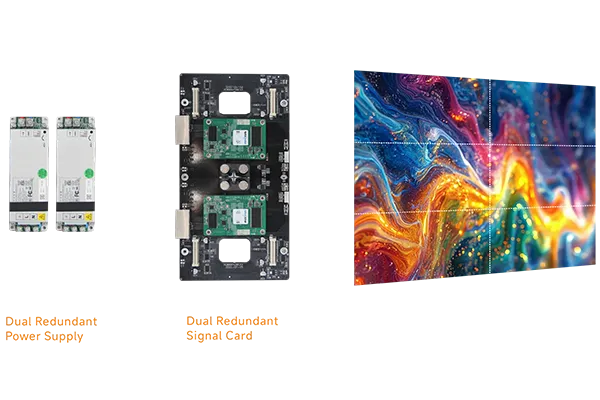

Power and Signal Dual Backup
Improves system stability, prevents black screens caused by failures, and ensures long-term reliable operation.
Applications
Widely used in auditoriums, conference rooms, banquets, lobby, exhibition demonstrations, transportation, studios, command monitoring and other fields.
Flagship store
Meeting room
Monitoring command center
Lobby
Technical Parameters
Contact us for detailed parameters.
| Model | P1.25 | P1.538 | P1.86 | P2 | P2.5 |
| Pixel Pitch | 1.25mm | 1.538mm | 1.86mm | 2mm | 2.5mm |
| Module Size | 320*160mm | ||||
| Module Resolution | 256*128 | 208*104 | 172*86 | 160*80 | 128*64 |
| Cabinet Size | 640*480*37mm | ||||
| Cabinet Resolution | 512*384 | 416*312 | 344*258 | 320*240 | 256*192 |
| Pixel Density (Pixles/㎡) | 640000 | 422500 | 284444 | 250000 | 160000 |
