Logo Letter LED Screens: A Comprehensive Overview

2024

In recent years, letter logo LED screens have become an increasingly popular choice for displaying letters, numbers, and messages in a wide variety of environments. These specialized LED displays, designed specifically for text-based communication, offer a range of benefits and are adaptable to both indoor and outdoor applications. In this article, we will explore the basic structure of letter logo LED screens, how they are installed and programmed, maintenance tips, and showcase an example from Meiyad, a leading provider in this field.

Introduction to Letter Logo LED Screens

An LED letter logo screen is a display screen primarily used to show alphanumeric characters—letters and numbers—often for advertising, public announcements, or informational purposes. Made up of multiple small LED (Light Emitting Diode) bulbs, these screens are controlled by a controller that allows for programming a variety of display effects, from simple scrolling text to more complex animations.

The advantages of letter logo led screens are numerous:

High brightness: These displays are visible even in bright sunlight, making them perfect for outdoor use.

Wide viewing angle: The screen can be seen clearly from various angles, ensuring visibility in large spaces.

Vibrant colors: LED technology provides rich, bright colors that enhance message visibility.

Long lifespan: LEDs are durable and energy-efficient, lasting much longer than traditional light sources.

Logo letter LED screens can be used in diverse environments such as shopping malls, airports, train stations, schools, stadiums, and corporate buildings, providing dynamic and eye-catching communication.

Components of a Letter Logo LED Screen

A typical logo letter LED screen consists of the following key components:

LED lamp beads:

These are the tiny lights that make up the display. They can be arranged in grids to form letters and numbers. The quality and brightness of the LEDs determine the clarity and visibility of the displayed content.

Controller:

The controller is the brain of the system. It is responsible for receiving input from the programming software and sending signals to the LED lamp beads to display the correct messages. Some systems allow remote control via software, providing flexibility in managing the display.

Power Supply:

Since LED displays consume electrical energy, a stable power supply is necessary to ensure continuous operation. A high-quality power supply ensures that the display functions without flickering or downtime.

Installation Methods for Logo Letter LED Screens

Installing an LED letter screen requires careful planning and the correct setup to ensure optimal performance. Here is a step-by-step guide to the installation process:

Determine the Installation Location:

Choose a location that offers maximum visibility. Ensure that the area is free from obstructions and consider factors such as ambient light and viewing distance.

Mounting the Screen:

Depending on the location (indoor or outdoor), secure the screen to a wall, frame, or stand. For larger installations, additional structural support may be necessary.

Connect the Power Supply:

The power cable should be connected to a stable power source. For safety, ensure the connection is weatherproof if the screen is installed outdoors.

Signal and Data Connection:

Connect the controller to the LED screen and ensure that data cables are properly routed. The signal from the controller will dictate how the LEDs will light up and create the desired text.

Programming Logo Letter LED Screens

Programming an logo letter LED screen involves using specialized software to design and control the messages displayed on the screen. Follow these steps for programming:

Choose the Right Software: Select programming software compatible with your logo letter LED screen. Common software solutions include LED Studio, UBoard, and others provided by the manufacturer.

Connect the Screen to Your Computer: Use a USB cable, Ethernet, or wireless connection to link your computer with the controller. This will allow you to transfer data and control the display remotely.

Design and Input Content: Using the software, create or upload your desired text or graphics. You can set parameters such as font style, speed, color, and animation effects.

Upload the Program: Once the content is ready, upload it to the LED screen via the software. The screen will then display the programmed messages according to the set design.

Testing: After uploading, test the display to ensure that all messages are shown clearly and accurately.

Maintenance of Logo Letter LED Screens

To maximize the lifespan and performance of your logo letter LED screen, regular maintenance is essential. Here are some key maintenance tips:

Regular Cleaning: Dust, dirt, and debris can accumulate on the surface of the display. Use a soft cloth to clean the screen periodically and avoid using harsh chemicals that could damage the LEDs.

Check Power and Signal Connections: Ensure that the power supply is stable and that all signal and data cables are connected securely. Loose or faulty connections can lead to display issues.

Protect from Fire and Moisture: LED screens, especially outdoor models, should be protected from moisture and extreme temperatures. Ensure proper insulation and sealing of any outdoor displays.

Routine Inspections: Conduct regular visual inspections to check for any malfunctioning LEDs or other issues. Address any damaged components promptly to prevent larger problems.

Software Updates: Keep the controller’s firmware and programming software up to date to ensure compatibility with new features and improvements.

Meiyad Letter Logo LED Screen Case Study

In today’s competitive market, creating a memorable first impression is key to brand success. Logo letter LED screens offer an innovative way to showcase your logo in a way that grabs attention and leaves a lasting impact. Unlike traditional static signs, letter LED screens can display your logo with vibrant colors, dynamic animations, and eye-catching effects, ensuring that your brand is impossible to ignore.

Whether it's a glowing logo on a storefront, a digital sign at a trade show, or a large-scale installation at a city landmark, LED screens bring your brand to life in a way that traditional methods simply can't match. With their high visibility, customizability, and energy efficiency, letter LED screens make your logo shine brighter and stand out from the crowd, helping you build stronger brand recognition and engage your audience in a powerful, interactive way.

One notable example of the effective use of letter LED screens is from Meiyad, a prominent manufacturer of LED display solutions. Meiyad has successfully implemented logo letter LED screens in several high-profile projects, including:

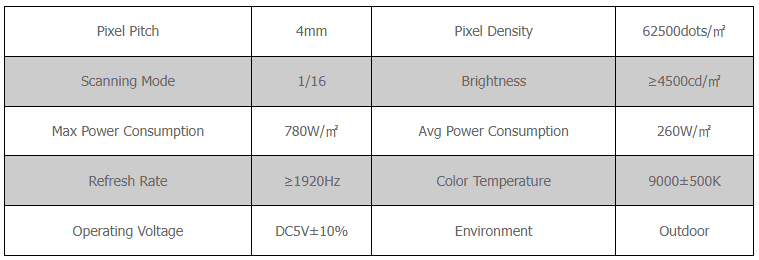

RADO SWITZERLAND Outdoor P4 Letter Logo LED Screen

ECCO Indoor P2 Letter Logo LED Sign

City Memory Outdoor P5 Letter Logo LED Display Sign

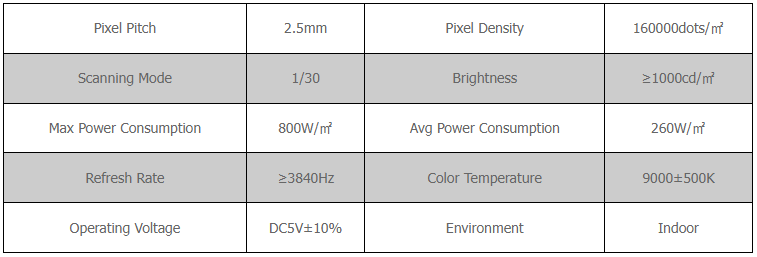

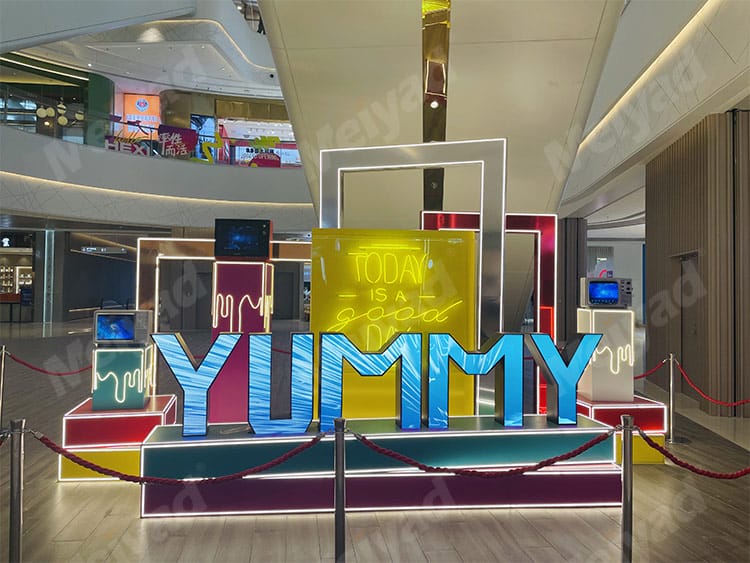

YUMMY Indoor P2.5 Letter LED Display Screen

Conclusion

Logo letter LED screens are a versatile and efficient communication tool, offering businesses, institutions, and individuals the ability to display dynamic, attention-grabbing messages. With their high brightness, long lifespan, and customizable content, they are ideal for a wide range of applications. Whether you are considering installing one for advertising, public information, or internal communications, understanding the components, installation, programming, and maintenance requirements will ensure that your logo letter LED screen performs optimally for years to come.
