Transparent LED Screen Related Wiring Method

2021-06-12 www.myddisplay.com

Generally speaking, the wire mentioned in the wiring method of the led display refers to the power cord and network cable (also known as the signal wire) of the led display. In most cases, the power cord and the network cable are separated. They follow their own wiring rules. The power cord is connected to the circuit, and the network cable is connected to the computer or control box. Of course, some led display manufacturers or products use the two-in-one power signal line setting, which can reduce the workload for users. Specifically, let's talk about it in conjunction with the wiring simulation diagram of the transparent led screen.


Transparent LED Screen Related Wiring Method

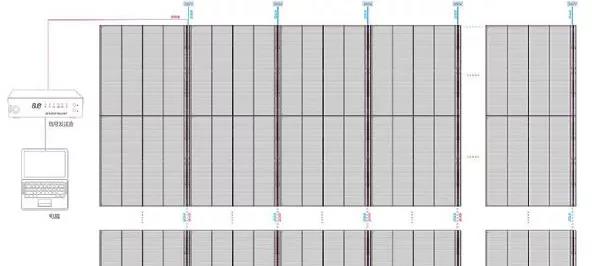

In the above figure, the blue line indicates the power line routing method, and the red line indicates the signal line routing method


1. The routing method of the power cord of the transparent led screen


As shown in the figure, the led screen and the power supply system are connected through the main power cord, and the cabinet and the cabinet are connected in series through the power cord wiring to ensure the normal power supply of the entire led screen.


2. Transparent led screen signal line routing method


As shown in the figure, the main signal line is used to connect the led screen and the control system, and the cabinet and the cabinet are connected in series through the signal line wiring to ensure the normal signal input of the entire led screen.


The above is an introduction to the wiring method of transparent led screen products, for your reference only, you can also consult our sales or technical consultants for specific issues related to transparent led displays.
